Part 1: The Target

Hacking into a computer might sound daunting, but with Metasploitable, it's a controlled environment designed for learning. Metasploitable is a Virtual Machine purposely left unpatched to provide a hands-on experience in cybersecurity. The goal is to run Metasploitable within Kali using a Docker image, opening up possibilities for learning and experimentation.

Step 1: Installing Docker

Opening up a Kali terminal ssh session, I ran the following commands:

• sudo apt install -y docker.io (installs docker)

• sudo systemctl enable docker --now (turns docker on)

• sudo gpasswd -a $USER docker (adds your user to docker's group)

Step 2: Downloading and Running Metasploitable

Running the following command, I downloaded and ran the Metasploitable docker container.

docker run --name metasploitable -it tleemcjr/metasploitable2:latest sh -c "/bin/services.sh && bash"

I saw a bunch of loading messages... [ OK ]s.. and eventually a prompt:

root@eed0adc4aea4:/#

If I accidentally shut down my Metasploitable docker image, I used the docker start command to revive it:

docker start -ai metasploitable

I then opened and ran a second Kali terminal in order to interact with both Kali and Metasploitable simultaneously. I then used the command lsb_release - a to get the information of the operation system to double check where I am. This command is going to come in handy later on in the project. I can see now I am both in Metasploitable distribution system and the Kali Linux one.

Finding the Target IP

I observed the network addresses, comparing Kali and Metasploitable between each other using iconfig.

• For Kali, I’m interested in the docker0 interface (how Kali talks to its docker boxes)

• For Docker, I’m interest in the eth0 interface (it's primary "ethernet" connection)

From looking at both of these, I could see their respective inet addr (internet address) fields are 172.17.0.1 (Kali) and 172.17.0.2 (Metasploitable).

I wrote down the IP for eth0 on my Metasploitable container, as I needed it to target my attacks in the next step.

Part 2: The Recon

Reconnaissance is a crucial phase in hacking. I’ll perform reconnaissance using nmap, a powerful networking tool, to identify vulnerabilities. From my Kali box, I can scan the target PC and see if I can find any vulnerabilities to exploit.

Step 1: Installing Nmap

On a kali terminal, I ran sudo apt install -y nmap to install nmap.

Next, I performed a basic scan of the target Metasploitable container: nmap -p0-65535 172.17.0.2

• The -p0-65535 flag means "scan every port from 0 to 65535" -- all the possible ports.

• Whew! That's a lot of open ports!

Each one of those open ports could be a potential path into the vulnerable system! The vulnerability I’m looking for in this particular lab is on port 21.

Running nmap again, I scanned for vulnerabilities on port 21 using this command: nmap 172.17.0.2 --script vuln -p 21

The vulnerability I am looking for specifically is the vsftpd backdoor.

"On port 21, Metasploitable2 runs vsftpd, a popular FTP server. This particular version contains a backdoor that was slipped into the source code by an unknown intruder. The backdoor was quickly identified and removed, but not before quite a few people downloaded it. If a username is sent that ends in the sequence :) [ a happy face ], the backdoored version will open a listening shell on port 6200. We can demonstrate this with telnet or use the Metasploit Framework module to automatically exploit it." - Metasploitable Exploitability Guide

Part 3: The Tool

In the old days, hackers and penetration testers had to write their exploits manually. This took a lot of scripting, hours, and caffeine. Instead, I’m going to use one of the most powerful penetration testing tools out there: Metasploit. (Yes, that's where the name "Metasploitable" comes from!) Metasploit Framework is a robust penetration testing tool that simplifies the process of exploiting vulnerabilities.

Step 1: Installing Metasploit and its Prerequisites

On Kali, I ran the following commands to install the Metasploit Framework and its prerequisites:

sudo apt install postgresql postgresql-contrib sudo systemctl enable postgresql --now sudo apt install metasploit-framework

Step 2: Initialize a Database for Metasploit

For metasploit you need to use a database. So I initialized an empty database for Metasploit using this command:

sudo msfdb init

After entering my password, the new database was created.

Step 3: Launch Metasploit

And the finally I was able to launch it using: msfconsole. After waiting a bit, I saw the Metasploit welcome logo and the msf6 > prompt. So I had officially gotten into Metasploit.

Unfortunately Metasploit has taken over my Kali terminal window, so I opened a third console window just in case I needed Kali later down the road.

Part 4: The Exploit

Metasploit offers a library of exploits, and we'll focus on exploiting the vsftpd backdoor vulnerability on Metasploitable.

Step 1: Search for the vsftpd Exploit in Metasploit

In order for me to search for an appropriate exploit, I needed to run the command: search vsftpd.

Step 2: Load the Exploit Module and Configure

Here I was able to find a module and it has a rank of excellent. (This means it works reliably!) I loaded the module using use exploit/unix/ftp/vsftpd_234_backdoor.

After doing this, the prompt changed to reflet the loaded exploit. I then ran options to view the available settings for this exploit

There are two required options, RHOSTS and RPORT. RPORT has correctly defaulted to 21, but I needed to set RHOSTS.

I assigned RHOSTS the IP address of my Metasploitable instance that I wrote down earlier ( the eth0 IP address):

msf6 exploit(unix/ftp/vsftpd_234_backdoor) > set RHOSTS 172.17.0.2 RHOSTS => 172.17.0.2

When this step was finally completed, the set was ready to execute the attack.

Step 3: Execute the Exploit and Gain Access to Metasploitable

In executing the attack I ran the command exploit and waited.

Running the iconfig and lsb_release -a again, the output should and does match the Metasploitable machine that I ran earlier.

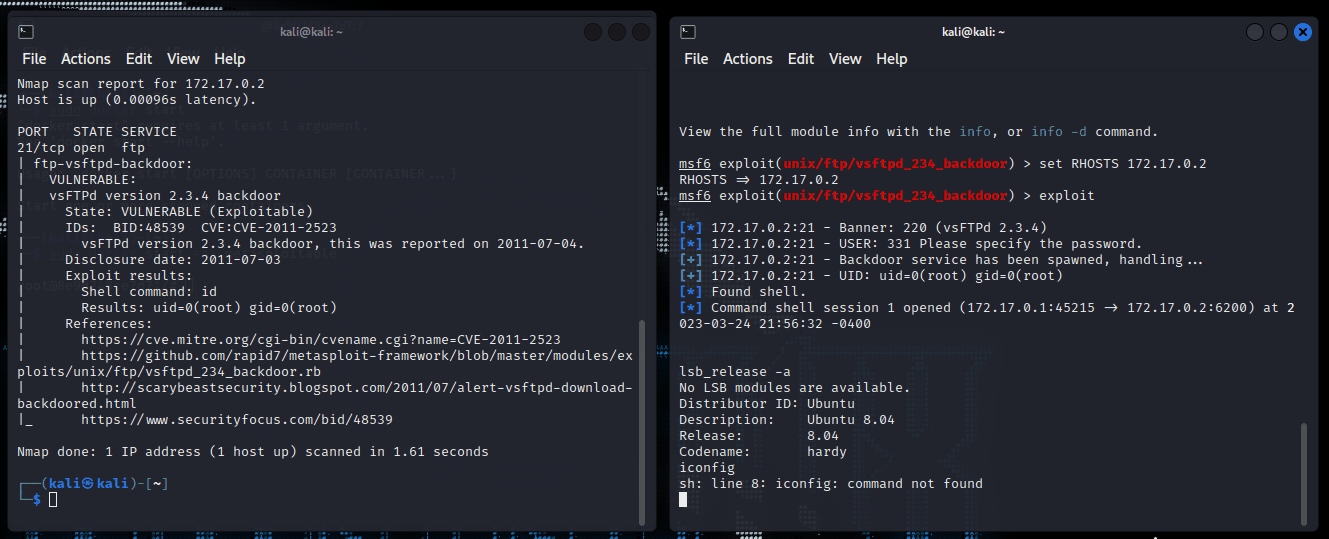

The gifs below shows these steps as I executed the attack. It shows some of the commands executed in the earlier sections as well.
